Sound Absorbing Ceiling Baffles

Sound Absorbing Ceiling Baffles

eNoise Control offers sound absorbing ceiling baffles as a cost effective way to reduce reverberation time and eliminate sound reflections from the ceiling in any environment. This results in dramatic improvements in overall acoustics. eNoise Control’s sound absorbing ceiling baffles to treat any space. They are suitable for industrial, commercial, and institutional applications. By eliminating sound due to noise reflections, overall sound exposure (TWA) can be dramatically reduced. Installing absorptive ceiling baffles is an easy, economical way to create a safer and more productive workspace.

Baffles can be installed in rows, egg-crate grid, or other patterns for optimal distribution and appearance. We offer a wide variety of styles, materials, colors, and sizes to meet most projects. We can help you find a solution that meets your performance, budget, and interior design needs. Most styles also meet ASTM-E84 Class I fire ratings.

Typical Ceiling Baffle Applications

Large spaces typically benefit the most from the installation of a sound absorbing ceiling baffle system. Below are some examples of ideal applications.

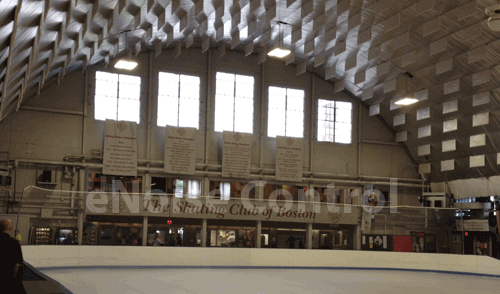

  • rink-bafflesFactory production areas
  • Assembly areas
  • Distribution centers
  • Warehouse areas
  • Laboratories
  • Gymnasiums
  • Multi-purpose rooms
  • Pool areas
  • Athletic, exercise, and dance facilities
  • Convention centers
  • Meeting rooms

Installation Guidelines & Accessories

eNoise Control baffles install quickly and easily. You can arrange the baffles in almost any pattern without compromising the acoustical performance as long as the baffles are evenly disbursed. A good guideline for baffle density is one baffle for every 10 to 15 square feet of ceiling area. The most common arrangements are grid or “egg-crate” pattern, or simple straight rows. Typically, baffles are installed above any existing lighting and sprinkler systems by stringing non-stretch galvanized steel aircraft cables perpendicular to your ceiling support bar joists, trusses, or beams using a series of turnbuckles, clips, and hooks. The cable is fastened taut and the baffles are suspended from the cable using hanging wires attached to the grommets in the baffles.

Select the style of acoustical baffle that best suits your application from our list of standard styles. Each style features a unique combination of materials, appearance, and performance.

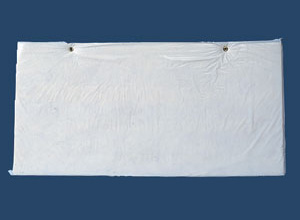

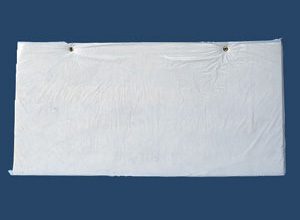

Polywrap Baffle

  • baffle-polywrappedSemi-rigid low to medium density fiberglass acoustical core
  • Heat sealed fire retardant, 2 mm smooth vinyl casing with light reflective finish
  • Waterproof and resistant to UV exposure
  • Available in 24″ x 48″ x 1.5″ thick units
  • Selected range of ASTM E-84 Class I fire rated vinyl to choose from
  • White or black color only
  • Machine set hanging grommets

PVC Baffle

  • Semi-rigid medium density fiberglass acoustical core
  • Heat sealed fire retardant, 3 mm embossed vinyl casing with a matt finish
  • Resists wrinkling and deformation over time retaining its clean, sleek look
  • Waterproof and resistant to UV exposure
  • Available in 24″ x 48″ x 1.5″ thick units
  • Selected range of ASTM E-84 Class I fire rated vinyl to choose from
  • White and custom colors available
  • Machine set hanging grommets

Sound Curtain Quilted Baffle

  • Super-tough ASTM E-84 Class I fire-rated fiberglass quilted baffles
  • Quilted vinyl facing is impervious to moisture, oils, grease, dirt, dust, airborne contaminants, and abrasion
  • Sound curtain baffles are completely factory sewn and sealed on all four edges
  • Standard size is 24″ x 48″, custom sizes available up to 48″ x 300″
  • Available in 1″ and 2″ thick
  • Gray, white, black, and tan colors available
  • Machine set hanging grommets

Sailcloth Baffle

  • Semi-rigid 3LB density fiberglass acoustical core sewn into high quality sail cloth casing
  • Resists wrinkling and deformation over time, retaining its clean, decorative look
  • Standard size is 24″ x 48″ x 2″ thick, custom sizes available up to 48″ x 96″
  • Wide range of ASTM E-84 Class I fire rated
  • Acoustically matched fabrics to choose from
  • Machine set hanging grommets

Call eNoise Control to further discuss the different baffle options and for assistance in choosing the best option for your application.
