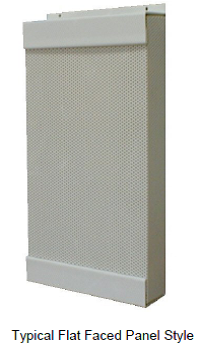

eNoise Control manufactures and supplies metal faced acoustical panels for a variety of applications, such as manufacturing facilities and recreation centers. The panels feature a fully formed one-piece perforated metal shell. Mount them to your existing walls for sound control that is both attractive and sturdy.

flat metal faced acoustical panelsStandard Specifications

  • 22 gauge perforated steel
  • 30″ wide x 12′ long
  • Corrosion resistant electro-galvanized steel
  • High performance noise absorption characteristics to NRC 1.05
  • ASTM E-84 Class I fire rating

Mounting options include 18 gauge built-in flush brackets and low-frequency stand-off brackets. Panels are available with a choice of sound absorbing fills and densities to fit your project. Several protective fill encapsulation options are available, including completely heat sealed encapsulation for use in Class 100 Clean Rooms.

Finish Options

  • Air dry enamel painting
  • Epoxy and chemical cure coatings
  • Outdoor graffiti resistant coatings
  • Baked polyester powder coating

Metal faced acoustical panels are available in heavy duty construction up to 14 gauge steel. Aluminum and stainless steel construction options are also available.

Metal Faced Panel Absorber – Acoustical Data

250 500 1000 2000 4000 NRC
Flush NR 0.64 1.05 1.16 1.05 1.05 0.95
Flush Sabins 15.95 26.22 28.92 26.35 26.36
4″ Space Sabins 25.25 37.03 34.88 33.16 34.90

Acoustical data based on a 30″ x 10″ x 2″ thick tested in accordance with ASTM C423-02a and E795-00.

eNoise Control provides expert assistance to clients in all industries regarding sound control solutions. Call us today for help ordering your metal faced panels.
