 PD Blower Sound Enclosure

eNoise Control has designed our removable acoustic steel sound enclosure specifically for noise attenuation for PD Blowers (Positive Displacement Blowers). Our sound enclosure is designed if your specification is needed for below 85 dBA (decibels), a community property line concern, or any other high level of sound reduction.

Our sound enclosures for PD Blowers have measured 60-80% quieter during before and after equipment installations. This is achieved with our model MSE-4 Sound Enclosure system. Features include an independent frame system, removable, modular acoustic steel panels, silenced air intake and exhaust fan.

Company’s such as Dresser, Roots, Gardner Denver have utilized our blower package sound enclosures for their rotary positive blower. Our sound attenuation cabinet offers flexibility to remove panels with quarter-turn retainers. All these features create easy maintenance and durability over time for our sound package.

Please call eNoise Control to discuss your Positive Displacement Blower noise control application.



PD_blower_Alumaframe2

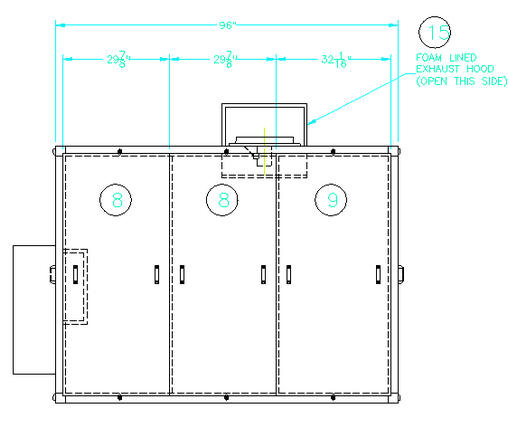

Typical Rear View

PD_blower_Alumaframe2a

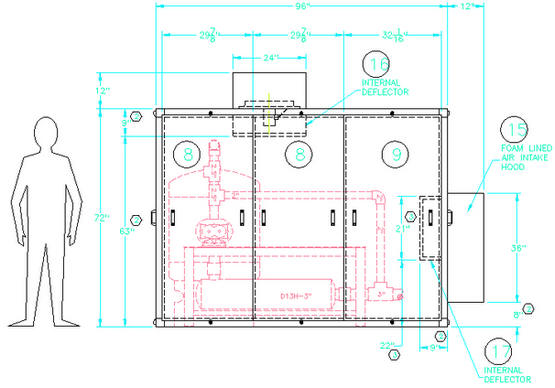

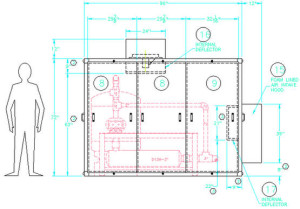

Typical Front View
